CARBURETOR ADAPTORS

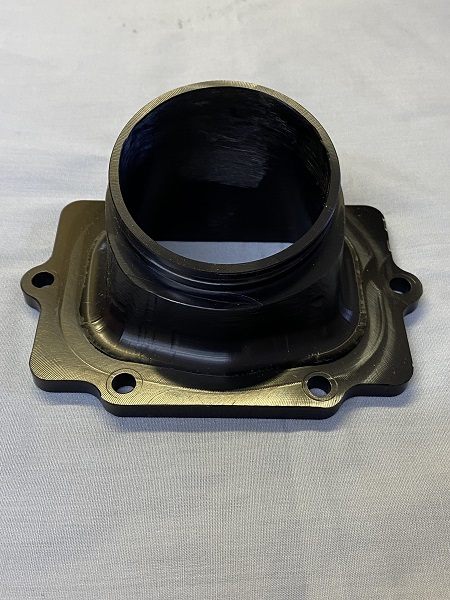

The carburetor adaptors for the Mach I, Mach Z & FIII take the place of the factory flanges and support the coils in the original location. These adaptors are for larger carbs when installed on the motor. They will accept up to a 56mm carb. A standard Mikuni carburetor rubber 38mm or 44mm is used to bolt on to the adaptor (sold seperately). For larger carbs such as the 56mm we use a clamp on style carb boot (sold seperately). The XP carb adaptors are for 44mm carbs and larger. Most carburators will need to be modifed by shortening the bottoms, needle jets, carb bowls, and plugs. The old style Vforce reeds will need to be used and you must modify the stuffers. The bulk head will need to be dimpled. The clutch tower bolt will need to be moved. The XP adaptors are sandcast, and come complete with carb rubbers, clamps, and reed gaskets. Sold in sets of 2. New for the 2010/2011 race season are Diad aluminum manifolds. We are carrying 2 cylinder Rotax and 3 cylinder 809 for Rotax coils or MSD ignition. Diad manifolds kits include aluminum manifold plates, reed gaskets, clamps, carb boots, and flat head screws that are to be used along with your stock screws. The Polaris Watercraft and 2 cyl. aluminum manifold plates are big reed cages for the small block bases.

In stock
SKU
CARBURETOR ADAPTORS
Grouped product items
Product Name   Model Price Qty
54/56mm Carburetor Adaptors (Large reeds) (H3-5)
1040243
$320.00
54/56mm Carburetor Adaptors (Small Reed) (H3-4)
1040242
$320.00
Aluminum Carburetor Adaptors For Nitrous Oxide Systems With Large Reeds
1040252
$320.00
Aluminum Carburetor Adaptors For Nitrous Oxide Systems With Small Reeds
1040253
$320.00
Aluminum carburetor adaptors specific for the 48 & 52mm carbs used on 809 bases with small reeds. Set of three manifolds, boots,
1040254
$320.00
Carburetor Adaptors For Trail (each) (I2-6)
420867805
$120.00
Carburetor Adaptors Straight Arctic Cat Thundercat
1040271
$201.25
Carburetor Adaptors V Force Angled Up Ski Doo Large Reed OEM & MSD Coils
1040235
$201.25
Carburetor Adaptors V-Force Angled Down (20 Degrees) Ski Doo Small Reed OEM Coils
1040236
$0.00
Out of stock
Carburetor Adaptors V-Force Angled Down Ski Doo Small Reed OEM Coils (H7-3)
1040241
$201.25
Carburetor Adaptors V-Force Straight Ski Doo Large Reed & 2 Cyl. Arctic Cat MSD Coils
1040237
$201.25
Carburetor Adaptors V-Force Straight Ski Doo Small Reed OEM & MSD Coils (H7-2)
1040240
$201.25
Diad Aluminum Manifold Kit 2 Cyl. Rotax (H3-1)
1045630
$225.00
Diad Aluminum Manifold Kit 3 Cyl. For MSD Coils (H3-2)
1045635
$310.00
Diad Aluminum Manifold Kit 3 Cyl. For Rotax Coils (H3-3)
1045640
$310.00
Diad Aluminum Manifold Plate
Diad Aluminum Manifold Plate
$0.00
Out of stock
Manifolds for 52x65mm Carbs with Carb Boot & Clamps
1040265
$195.50
Manifolds for 52x65mm Carbs.
1040267
$69.00
Mikuni Carburetor Rubbers 40mm-56mm (I4-3)
VM40/200
$24.00
Polaris 2 & 3 Cylinder (XC/XCR) Carb Adapter Plate Straight (each) (H5-8)
1040276
$68.00
Polaris Watercraft & New Polaris 2 Cyl. Adapter Plate Straight (each) (H7-6)
1040277
$68.00
Polaris Watercraft & New Polaris 2 Cyl. Carb. Adapter Plate Angled 10 degrees (each) (H7-5)
1040274
$68.00
Rotax 2 Cylinder Carb Boot Angled 20 degrees (Each) (I1-6)
RB-126-1
$68.00
Rotax 2 Cylinder Carb. Adaptor Plates Angled (7, 10, & 12 degrees)(Each) (H6-1)
1040278
$70.00
